RGB2SVIDEO

This device converts 15KHz RGB + Sync analog video signal to S-Video or CVBS (composite) signal. Both PAL and NTSC are supported (you should choose one at build).

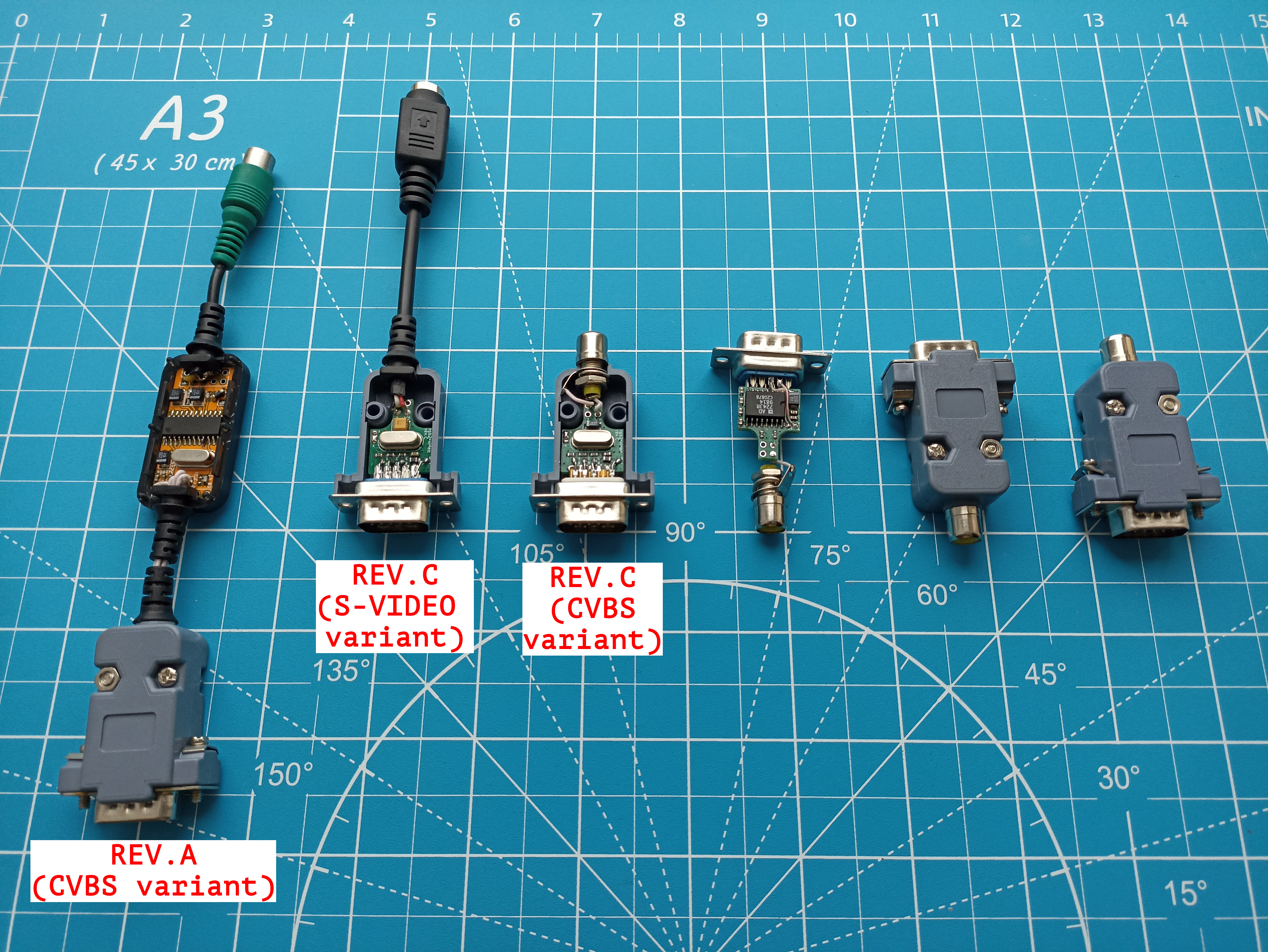

Revision C PCB

This PCB is based on AD724 chip and designed to fit into DSUB shell.

release/pcb.rev.C.pdf - schematic and bill of materials
release/bom_interactive.rev.C.html - interactive BOM
release/gerber.rev.C.zip - fabrication files

Revision A PCB

This PCB is based on BH7236AF/KA2198BD/CXA1645/CXA2075 chips and designed to fit into AK-S-71 shell.

release/pcb.rev.A2.pdf - schematic and bill of materials
release/bom_interactive.rev.A2.html - interactive BOM
release/gerber.rev.A2.zip - fabrication files
