MIST.1010

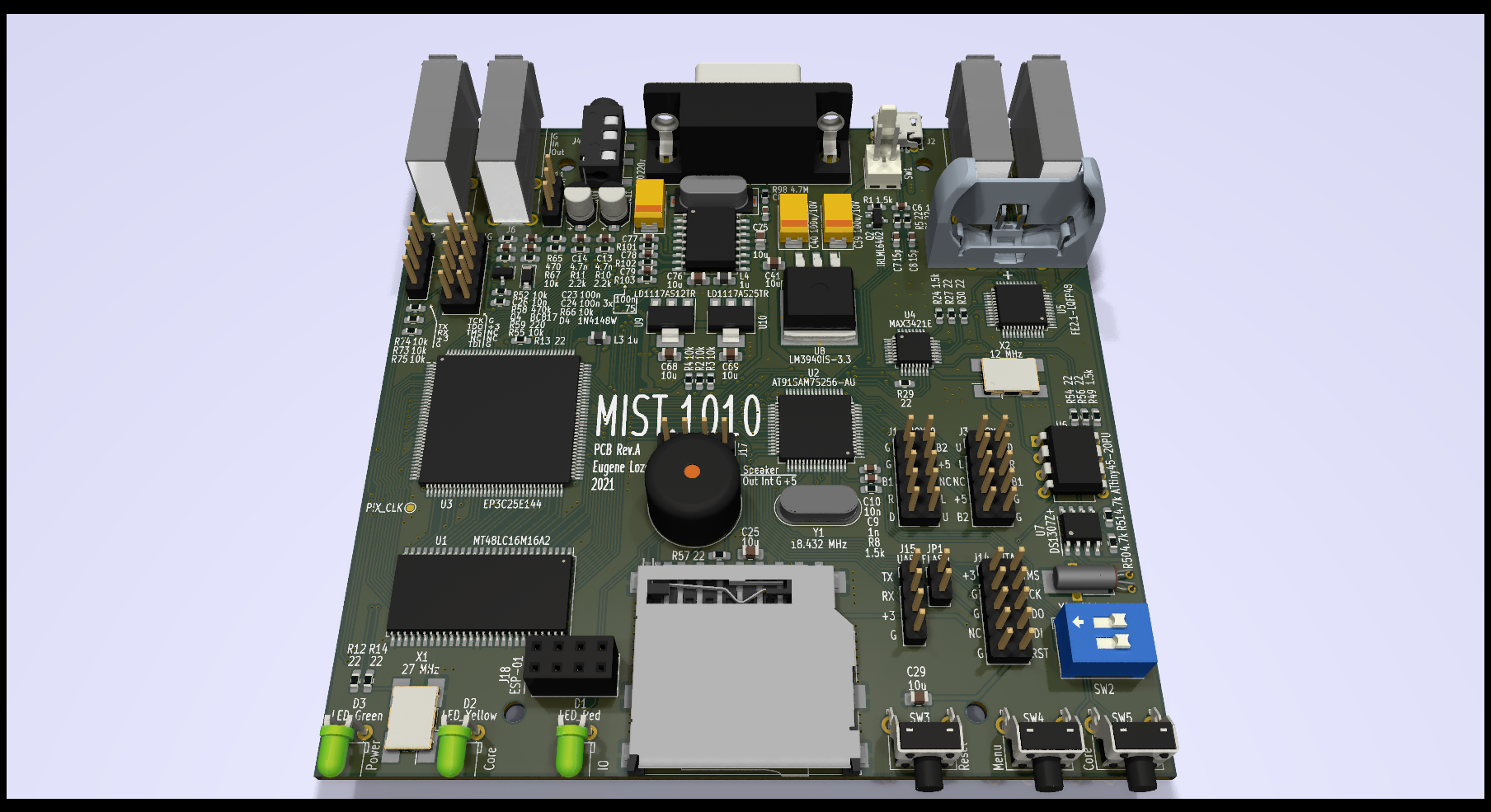

10x10cm PCB variant of MIST FPGA project


Tech specs:

  • EP3C25E144 FPGA
  • 32M of SDRAM
  • VGA video output
  • PAL video + audio output via 3.5 jack connector (raspberry-pi compatible pinout)
  • 4xUSB ports for keyboard, mouse and joysticks
  • 2xDB-9 ports for Amiga mouse and joysticks
  • SD/microSD card slot
  • RTC with battery
  • Tape input
  • MicroUSB power supply
  • Board optimized for G738 and G706 cases

Some photos: link

Current status

  • Rev.A - done. Please note the errata.

TODO:

  • Check wifi
  • Make Rev.A1 with all fixes.
